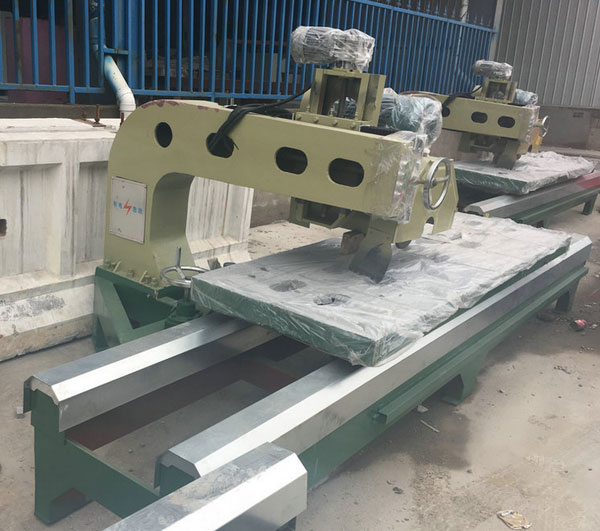

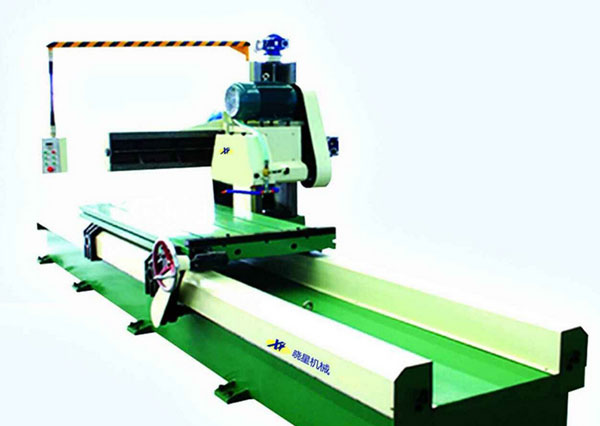

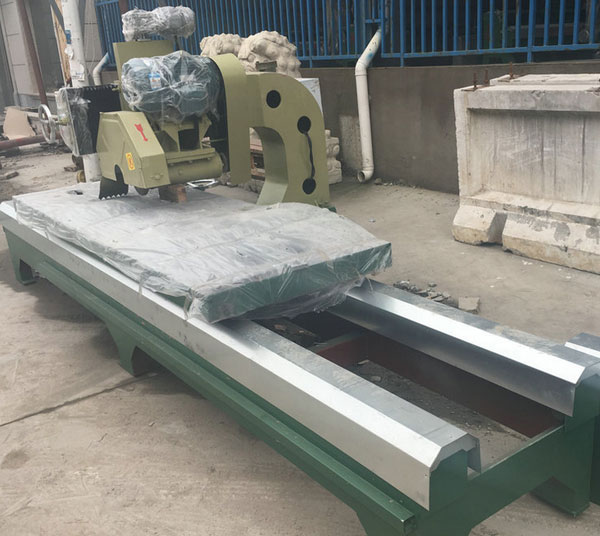

濱州曉星機械對XSQ60型手搖切邊機進行了改進，加長橫梁，使切割寬度增加到了1200mm；增加升降電動機，實現了電動升降；加大鋸片護罩，增大了主電機功率，能夠使用Φ400mm～Φ600mm鋸片，切割160mm以下的板材、條石等；增加不同直徑的皮帶輪，并且能夠互換，以適應不同直徑的鋸片所需的轉速；加長主軸，使該機具有了割線、劃槽的功能；XSQ60型手搖切邊機的工作臺在原有油浸導軌的基礎上與主機連為一體，使該機不需特定的基礎來安裝，只需選擇一處較平坦的混凝土結構地面安放后稍加調整就可以使用，搬遷和安裝更加方便。 The length of the beam, so that the cutting width increased to 1200mm; increase the lift motor, to achieve the electric lift;increase blade shroud, increases the power of the main motor, can use diameter 400mm to with 600mm saw blade, 160mm below the plate, stone cutting;an increase of different diameter belt wheel, and can be interchangeable, in order to adapt to the different diameter of the saw blade speed; lengthening spindle, so that the machine with the secant, slotting function;on the basis of the original oil guide with the host are connected as a whole, the machine does not need to be specific to install, only need to select a relatively flat concrete structure on the ground after placing a minor adjustment can be used, relocation and installation more convenient.
